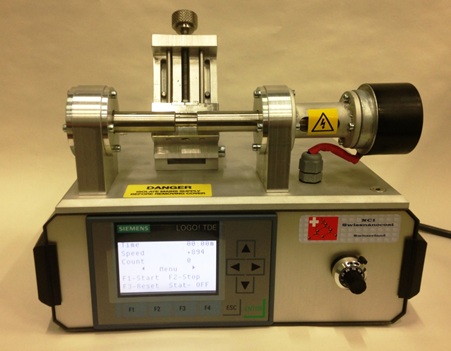

Coating Thickness Measurement Device

CT-01

Determining the coating thickness using a spherical abrasion test
In this measuring technique, a spherical indentation is abraded in the coated substrate with a steel ball. The resulting indentation is measured and the results are used to calculate the coating thickness.

• Features
• Determination of wear rates of coating and substrate
• Determination of coating thicknesses

• Main Specifications
• Working table dimension : 40 x 40 mm
• Shaft speed : 300 to 2000 rpm
• Standard ball diameters : 20, 35 mm
• Abrasion time ranges: 1 sec to 20 min
